Product Center > Laser ranging sensor > Short distance photon series > LS-X1Pro >
Product Features Technical Parameter Application scenarios Download PDF

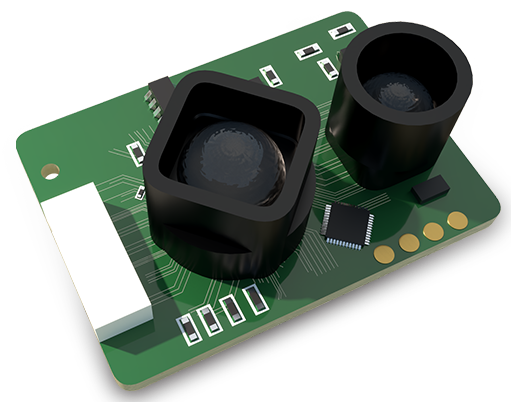

https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/0a0582419482ed8.png

LS-X1Pro

Download PDF Get Free Sample

Product Features

LS-X1Pro

Small laser ranging module LS-X1Pro is a short-range single point ranging radar based on the ToF principle. With unique optical and electrical design, it can achieve stable, accurate, and highly sensitive distance measurement. The product has built-in adaptation algorithms for various application environments and targets, and opens up multiple adjustable configurations and parameters. It can ensure excellent ranging performance in complex environments and meet the complex application needs of customers.

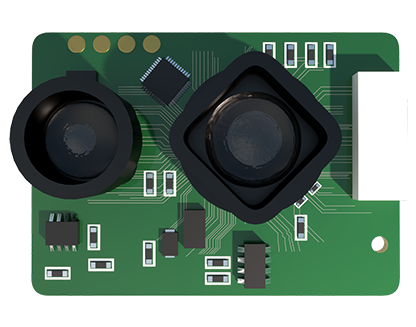

https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/af4904cc2e0046c.png
Small stature, great skills
Small size, easy to install, and easy to integrate; Lightweight, suitable for scenarios with strict load-bearing requirements; Low power consumption, suitable for battery powered or low-power demand scenarios;

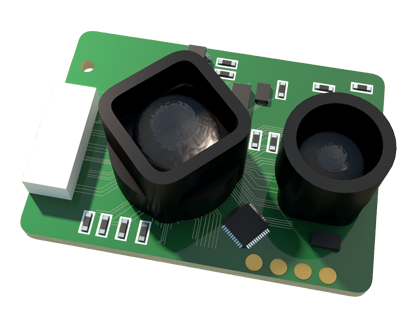

https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/5cde567a2660fa9.png
high performance-price ratio
Low cost distance measurement module with a range of 0.2~8 meters, featuring high stability, precision, and sensitivity for distance detection

Technical Parameter

modelLS-X1Pro
range0.05-20m (90% reflectivity) 0.05-10m (10% reflectivity)
frequency200Hz
Absolute accuracy±5cm(＜5m), 1%(≥5m)
repeatability±10mm
Anti environmental light8 meters @ 100Klux
Measure laser wavelength905nm
FOV3.4°
INPUT VOLTAGE3-3.6VDC
Average Power0.4W
communication modelUART and IIC

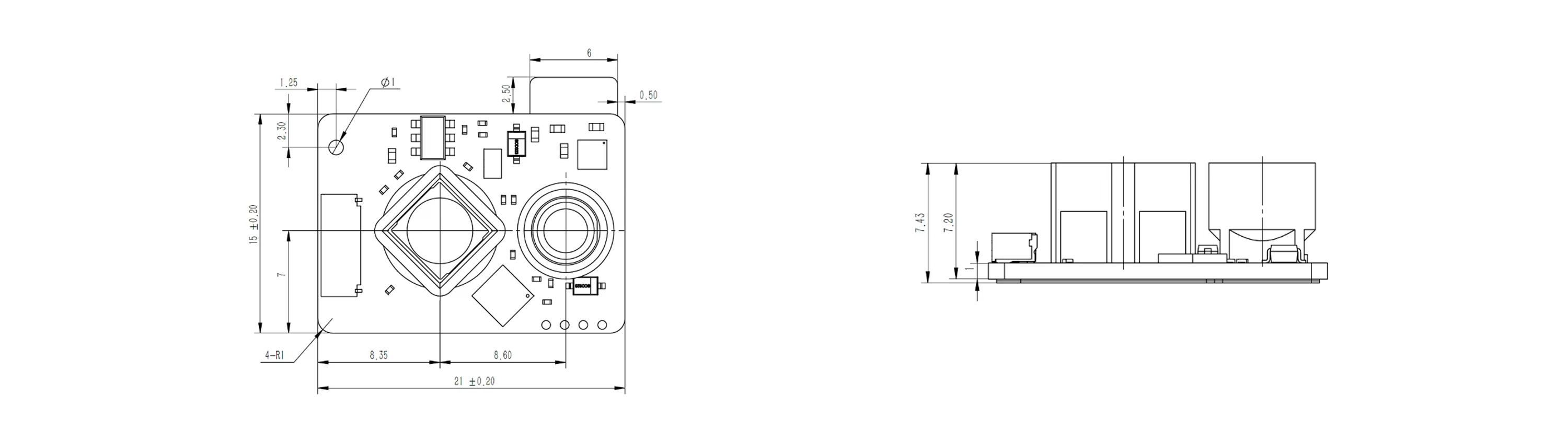

volume21* 15* 7.43mm
weight2g
operation temperature-20℃ ~ +60℃
Outgoing terminal0.8-6Pmm

Application scenarios

Shuttle car obstacle avoidance
Assisted focusing
Smart Parking

Wiring diagram
