Product Features
LM-X2Max

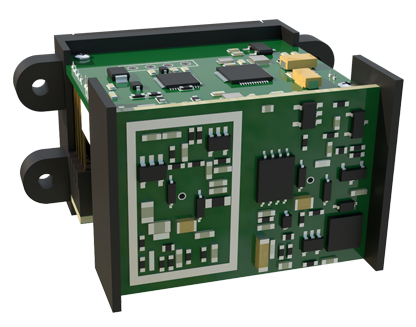

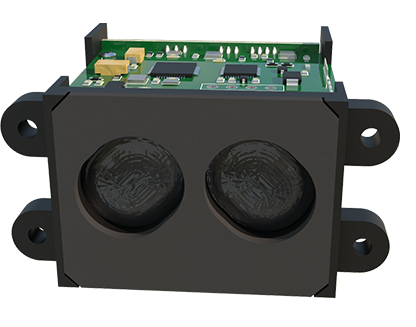

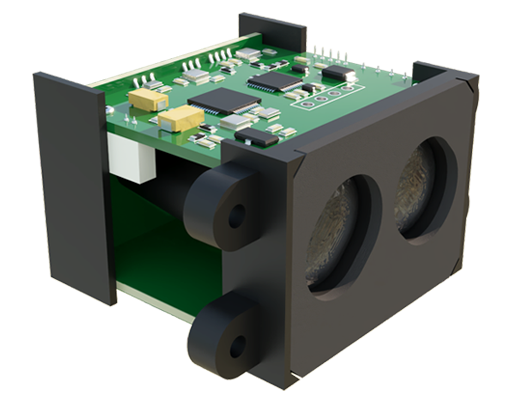

Level detection laser radar (industrial grade self-cleaning laser radar) LM-X2Max is a single point ranging LiDAR developed for the material level detection industry. The LM-X2Max maintains the basic ranging performance of TF02 Pro and is equipped with a unique dust removal brush device that can automatically clean the radar window to solve material hanging problems; Ensure that it can maintain the accuracy of distance measurement in environments with severe dust pollution and prone to dust deposition.
Self cleaning, easy to integrate
non-contact measurement
Technical Parameter
| model | LM-X2Max | |
| range | 0.1～40m@90%，0.1～13.5m@10% | |
| frequency | 1Hz~1000Hz (adjustable, default 100Hz) | |
| resolution | 1cm | |
| accuracy | ±5cm（0.1m~5m），±1%（5m~40m） | |
| Anti environmental light | 100Klux | |
| Measure laser wavelength | 850nm | |
| FOV | 3° | |
| Measure laser level | Class1 | |
| Indicate laser wavelength | -- | |
| INPUT VOLTAGE | 5-12V | |
| peak current | 300mA | |
| average current | 200mA | |
| Average Power | 1W | |
| communication model | Wireless, IIC, IO | |
| protection grade | IP65 | |
| volume | 69mm × 41.5mm × 26mm (length * width * height) | |
| weight | 50g (including wire) | |
| Shell material | PC/ABS | |
| operation temperature | -20°C~60°C | |
| Length | 80cm | |
| Outgoing terminal | GH1.25 4P | |
Wiring diagram
