Product Center > Laser ranging sensor > Medium distance light pulse series > LM-X2A >
Product Features Technical Parameter Application scenarios Download PDF
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/555a77eeaa9ae.png

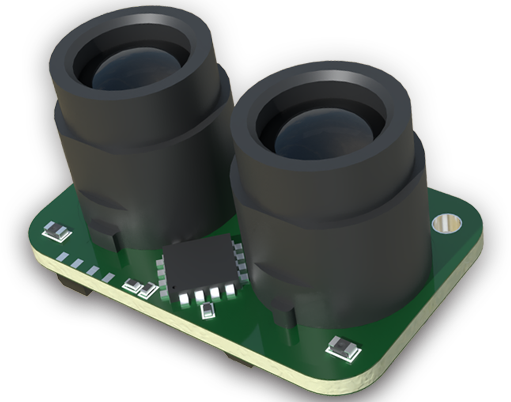

LM-X2A

Download PDF Get Free Sample

Product Features

LM-X2A

40m IP65 protected LiDAR As a cost-effective mid-range LiDAR, LM-X2A has a range performance of up to 40 meters. Based on the ToF principle, it can be widely used in fields such as unmanned aerial vehicle height determination, intelligent transportation, intelligent parking lots, and smart agriculture. As an upgraded version, LM-X2A has been upgraded and optimized through optical systems and algorithms, and has better performance in outdoor strong light, different reflectivity backgrounds, and different temperatures.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/babab966df4d29.png

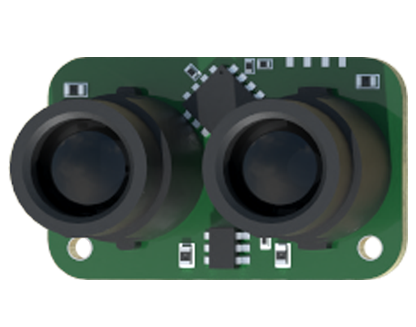

Far, accurate, and stable
The LM-X2A can achieve a maximum distance of 40 meters, with a blind spot as low as 10 cm, and supports a refresh rate of up to 100 Hz. The optimized and upgraded algorithm makes the distance measurement more accurate.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/2249c2ec81fb058.png

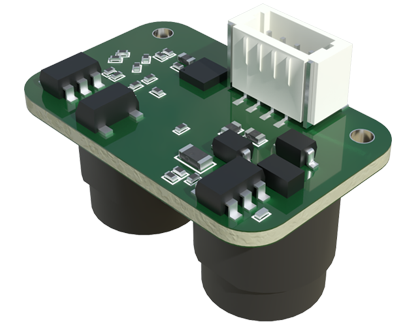

High strength body
Innovative production processes and hardware optimization have enabled the product to achieve a waterproof rating of IP65, and the integrated structural design gives the body higher strength.

Technical Parameter

modelLM-X2A
range0.05-50m (90% reflectivity) 0.05-20m (10% reflectivity)
frequency500Hz
resolution1cm
accuracy±5cm(＜5m), 1%(≥5m)
accuracy±10mm
Anti environmental light10 meters @ 100Klux
Measure laser wavelength905nm
FOV1.7°
Measure laser levelClass1
INPUT VOLTAGE3.3-5VDC
peak current0.4W
communication modelUART and IIC

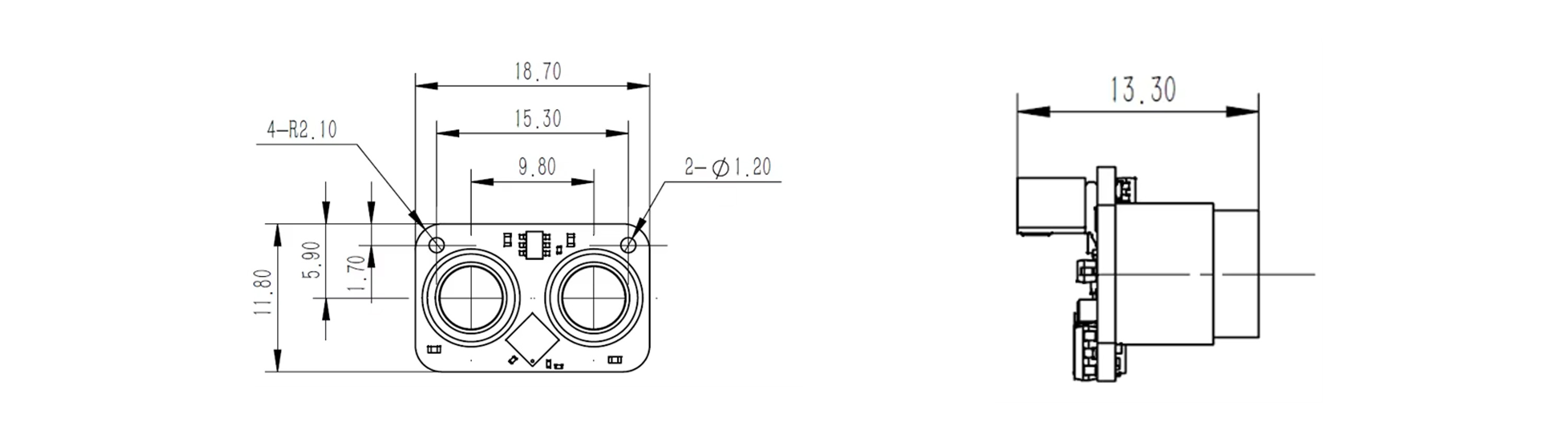

volume18.7 x 11.8 x 13.3mm
weight2g
operation temperature-20℃ ~ +60℃
Outgoing terminal4P 1.0mm

Application scenarios

Security obstacle avoidance detection
Large factory overhead crane collision detection
Shuttle car obstacle avoidance

Wiring diagram
