Product Center > Laser ranging sensor > Medium distance light pulse series > LM-X2Pro >
Product Features Technical Parameter Application scenarios Download PDF
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/c4c7b68111cbb02.png

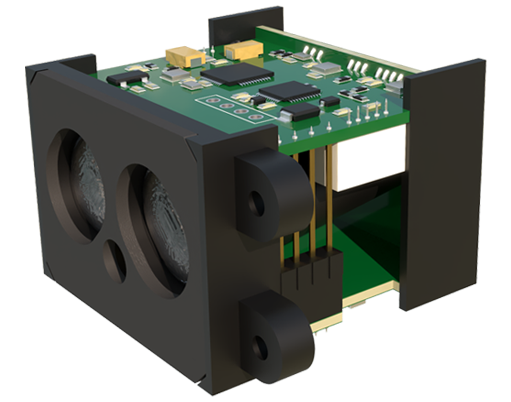

LM-X2Pro

Download PDF Get Free Sample

Product Features

LM-X2Pro

40m IP65 protected LiDAR The LX-X2Pro is a cost-effective mid-range LiDAR with a range of up to 40 meters. The LX-X2Pro has been significantly upgraded and optimized based on TF02, with a range performance of up to 40 meters. With a more efficient optical system and optimized circuit design, it not only ensures higher range performance, but also exhibits excellent performance in blind areas and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved. It can be widely applied in fields such as unmanned aerial vehicle height control, intelligent transportation, intelligent parking lots, and smart agriculture.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/7b711d2f2e45.png

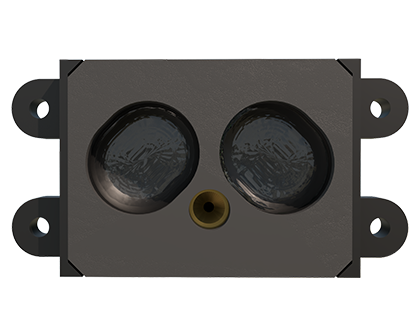

Far, accurate, and stable
The LX-X2Pro can achieve a maximum distance of 40 meters, with a blind spot as low as 10 cm, and supports a refresh rate of up to 1000 Hz. The optimized and upgraded algorithm makes the distance measurement more accurate.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/ae3bd0ebc227e05.png

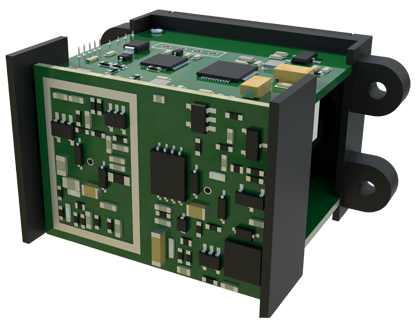

High strength body
Innovative production processes and hardware optimization have enabled the product to achieve a waterproof rating of IP65, and the integrated structural design gives the body higher strength without being fragile.

Technical Parameter

modelLM-X2Pro
range0.05～50m
frequency1Hz--20kHz (default 1kHz)
resolution1mm
accuracy±10cm
accuracy1cm
Anti environmental light100Klux
Measure laser wavelength905nm
FOV4mrad
Measure laser levelClass1
Indicate laser wavelengthRed light
INPUT VOLTAGE9-36VDC
Average Power0.8W
communication modelUART

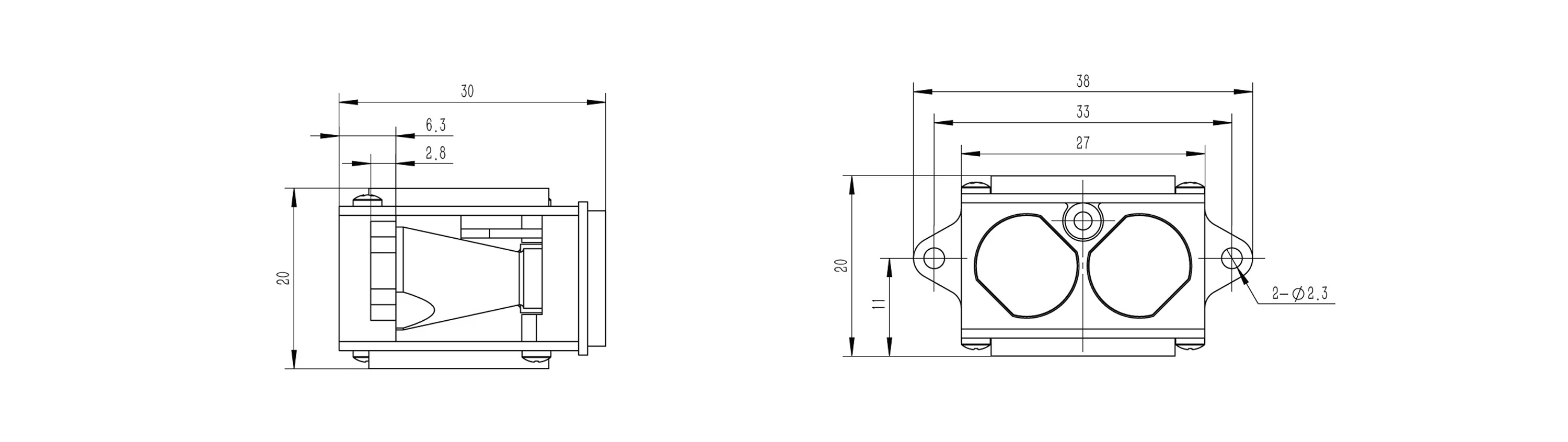

volume27 * 30 * 20mm
weight15g
operation temperature-40 to 60 ° C (no freezing, turn off indicator red light)
Outgoing terminal5P

Application scenarios

Large storage warehouse load detection
Smart Parking
Robot obstacle avoidance

Wiring diagram
