Product Features

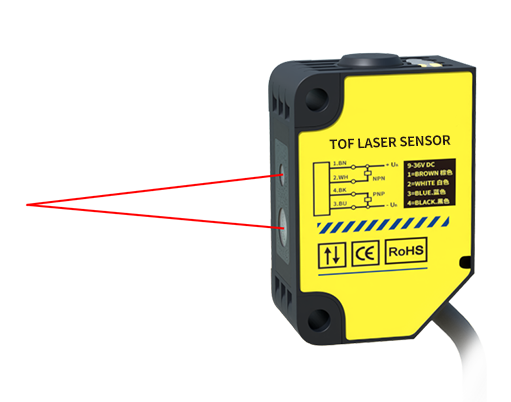

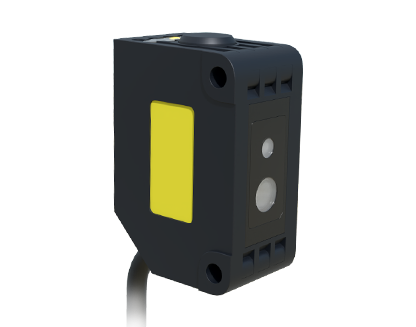

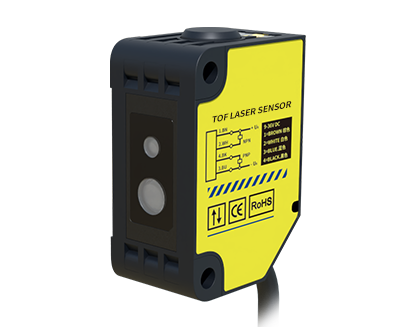

Long distance photoelectric sensor
Designed with one to many non reflective plates Get rid of the industrial freedom of reflective plates without distinguishing between diffuse reflection, reflective plates, and reflective types, completely simplifying the selection process
Intelligent background suppression, precise detection

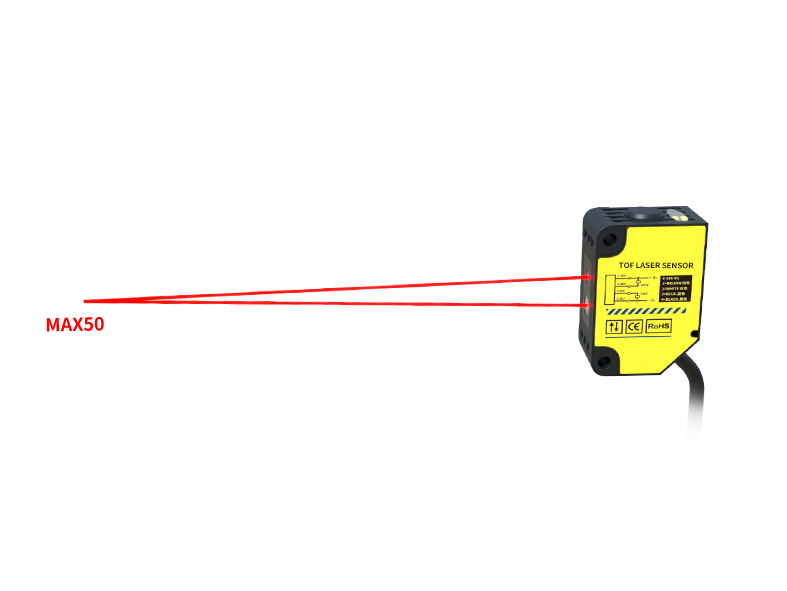

1m/2m/3m detection distance optional
Technical Parameter
| model | KN-DG10/KN-DG10P/KN-LDG10/KN-LDG10P | |
| detection distance | 30-2000mm (background suppression distance 1000mm) | |
| Light source (wavelength) | 640nm red light/660nm red laser | |
| supply voltage | DC12-24V pulsation (p-p) below 10% (DC10-30) | |
| Consumption current | ≤45mA | |
| control output | Load power supply current below 150mA (residual voltage below 1V) | |
| circuit protection | Surge protection, short circuit protection, polarity reversal protection | |
| response time | Action/reply within 1.0ms each | |
| Display light | Action indicator light (red) | |
| Temperature range | -25°C~+55°C | |
| Environmental lighting impact | Incandescent lamp: below 3000Lx | |
| Environmental humidity for use | Action time -45% -85% (no icing) RH Storage time: 35% -85% (no icing) RH | |
| voltage influence | When the rated power supply voltage fluctuates within ± 15%, the detection distance changes within ± 1% | |
| Insulation Resistance | Between the charging unit and the casing of a DC500 megohmmeter with a resistance of over 20M Ω | |
| dielectric strength | AC1000V and above, between the charging unit and the casing at 50/60Hz for 1 minute | |
| Vibration (durability) | 10-50Hz, 1.5mm double amplitude, reaching 1h in X, Y, Z directions | |
| Impact (durability) | 500m/s * 2 double amplitude, 3 times in X, Y, Z directions | |
| Protective structure | IP65 | |
| Connection method | Wire lead out type (standard 2m) | |
| Housing material | ABS | |
Application scenarios
Wiring diagram
