Product Features

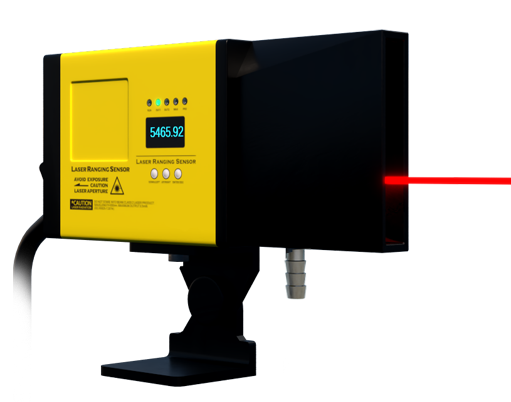

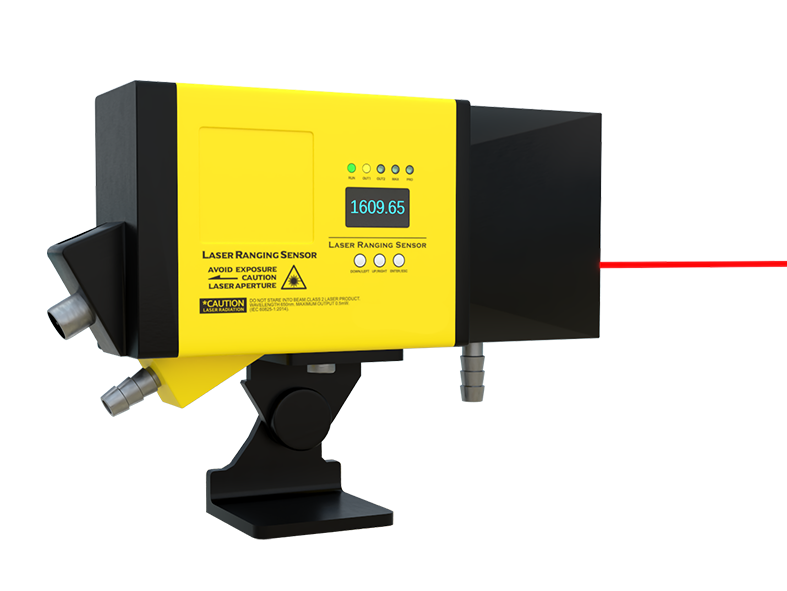

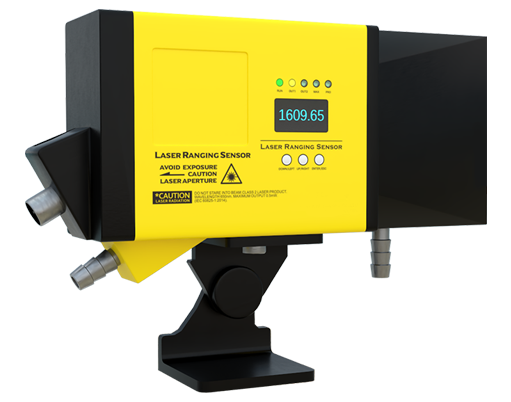

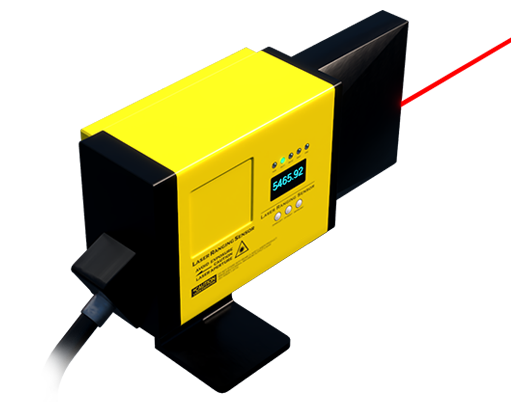

Laser liquid level sensor
Strong adaptability and wide measurement range Laser liquid level sensors can adapt to various complex industrial environments, including tall storage tanks or narrow pipelines in different scenarios. Its laser beam is very thin, even if the liquid level surface is extremely rough, it can work normally, and the receiving range is wide, covering a large measurement area.
Strong anti-interference ability and good stability
Easy to install and maintain, cost-effective
Technical Parameter
| measuring range | 0.1～30m | |
| measurement accuracy | 1mm | |
| resolution | 0.1mm | |
| repeatability | 0.5mm | |
| operation temperature | -10 ℃~50 ℃ (air-cooled+air blown) | |
| storage temperature | -20℃～60℃ | |
| Supply Voltage | 10V to 30VDC | |
| Time | 10Hz (high temperature steel liquid surface)/(high temperature aluminum liquid surface) | |
| protection grade | IP65， ALUMINUM SHELL | |

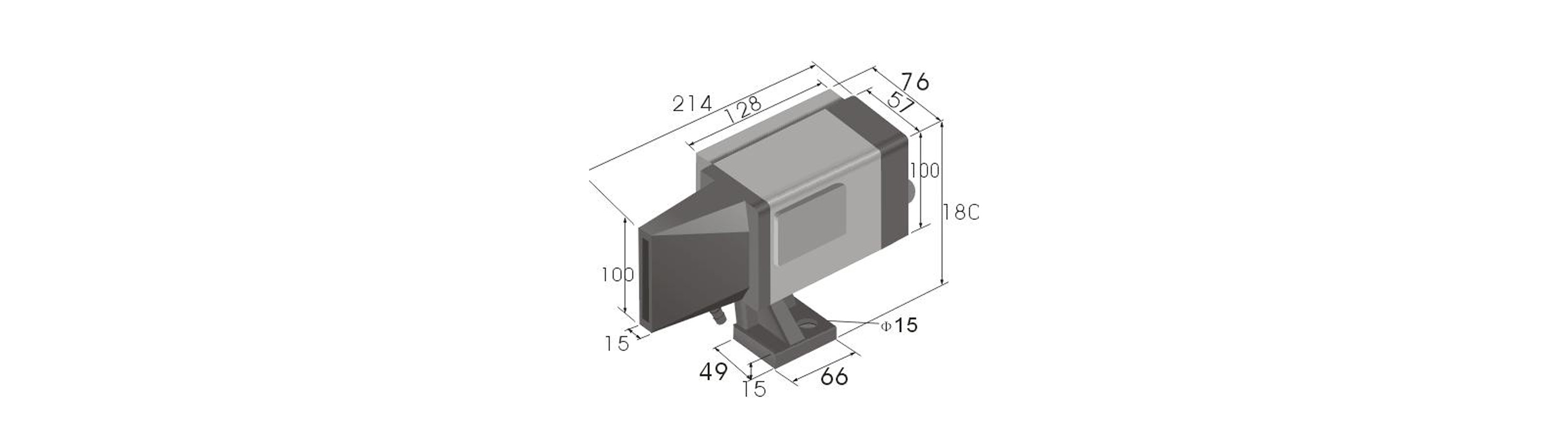

| Sensor Size | 220×124×60mm （L×W×H） | |
| weight | 1.9Kg (including installation bracket) | |
| data interface | RS232 (RS422 requires customization); Baud rate 9600, ASCII format 8n1 | |
| Switching Output | Programmable switch output (center point and hysteresis range) with load capacity of 0.5A | |
| Working mode | DT (Measurement of Aluminum Water Surface) | |
| analog output | Programmable measurement range, 4-20mA; load impedance ≤ 500 Ω | |

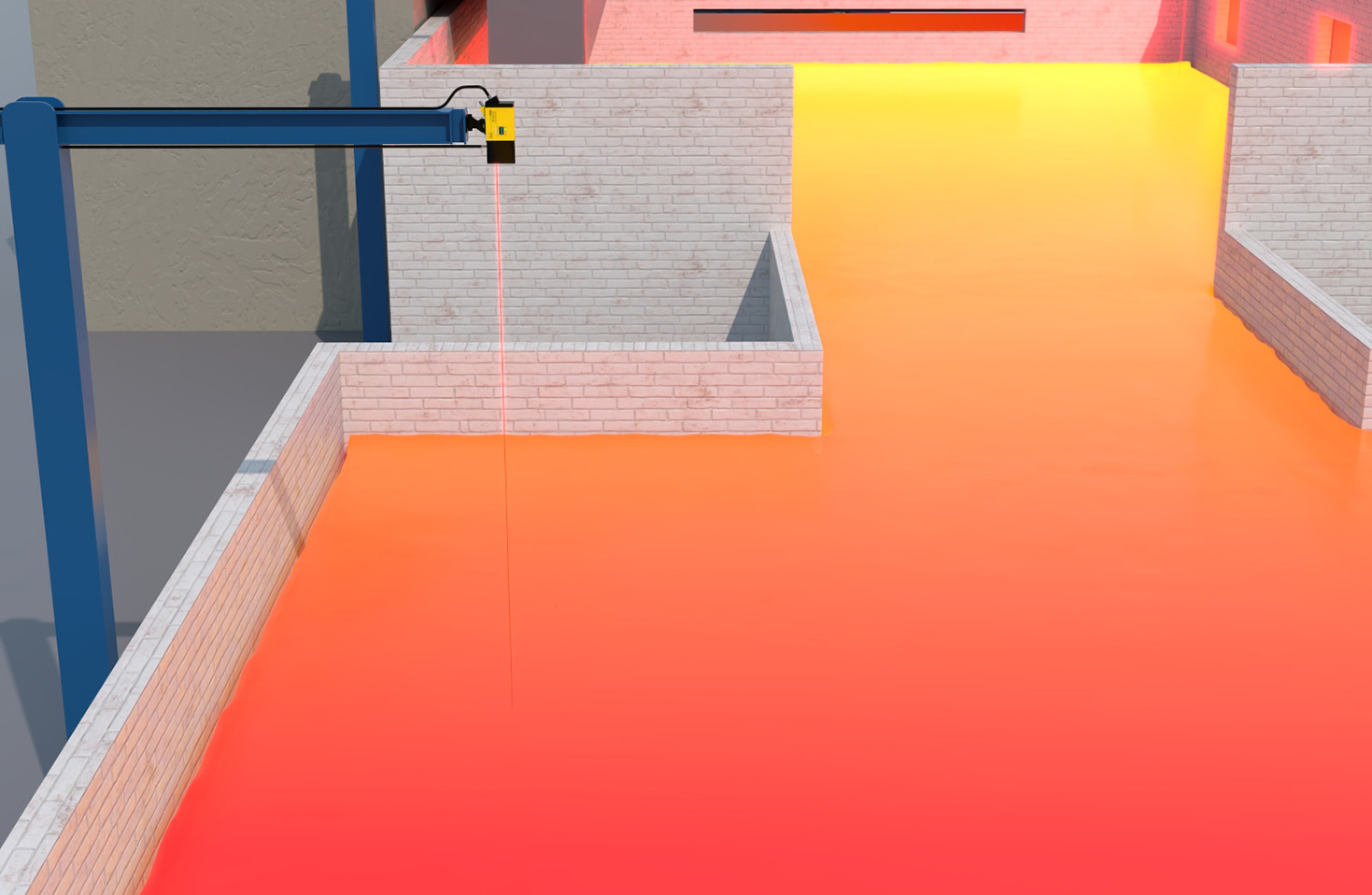

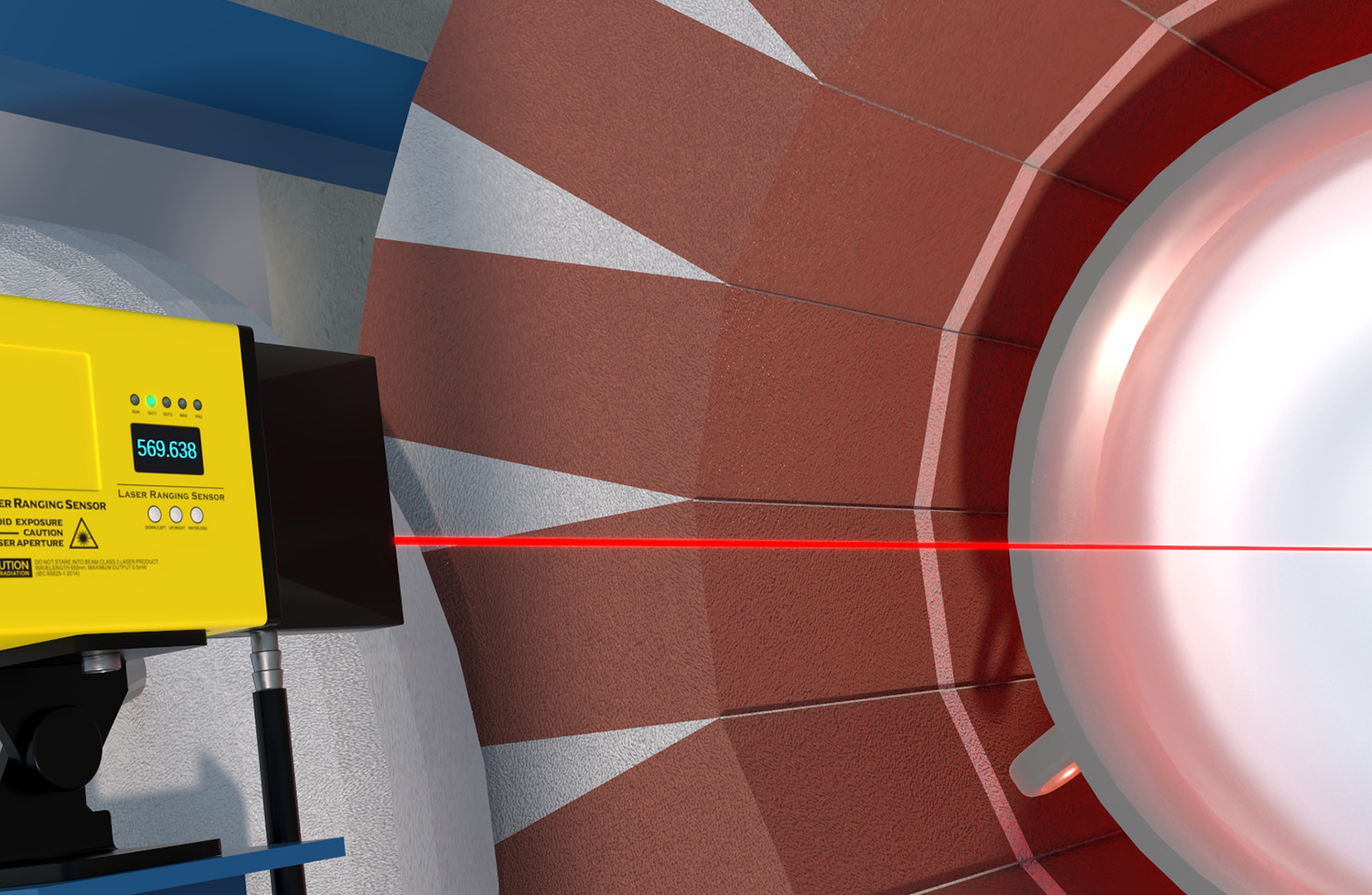

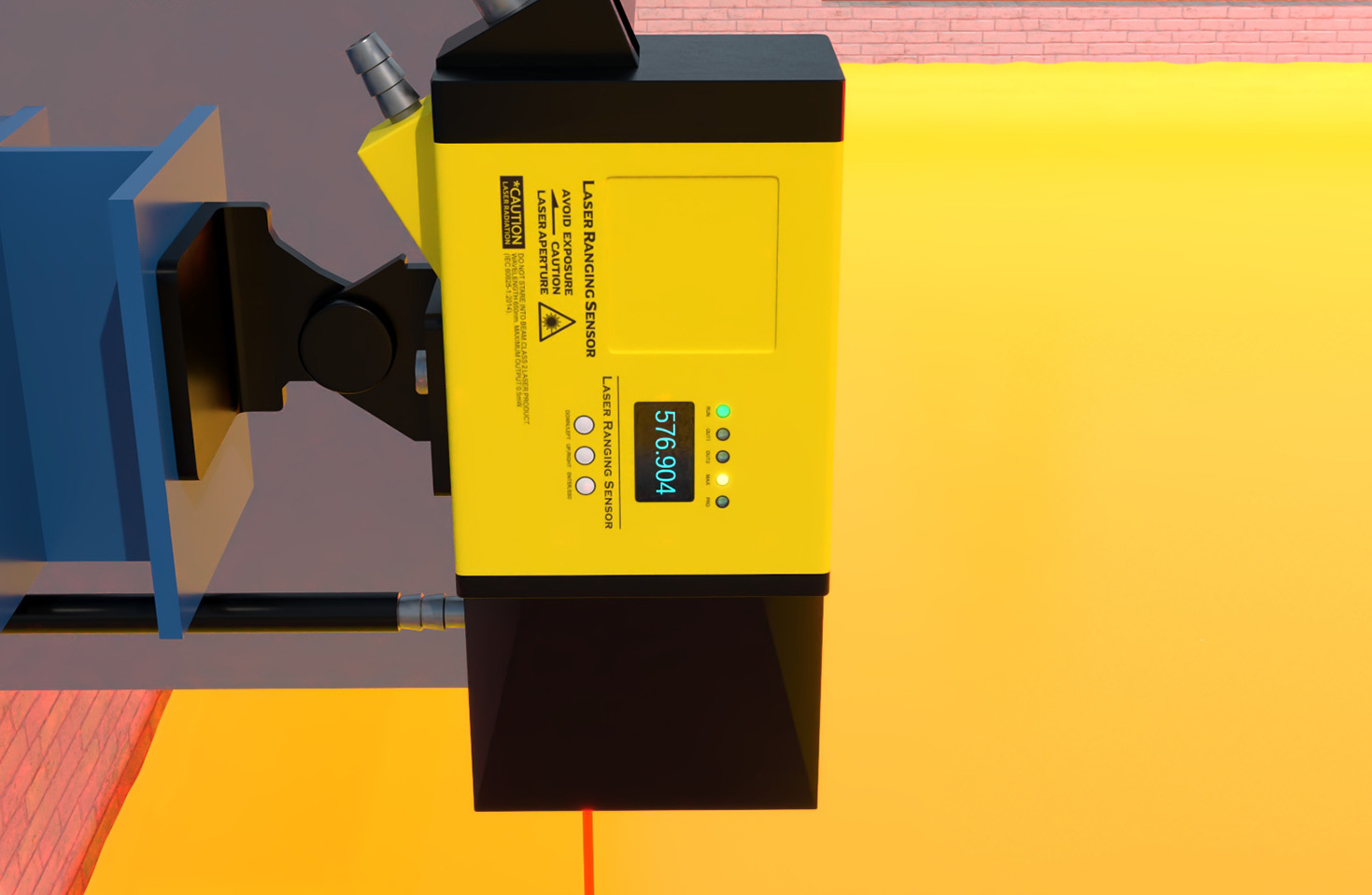

Application scenarios
Wiring diagram
