Product Features

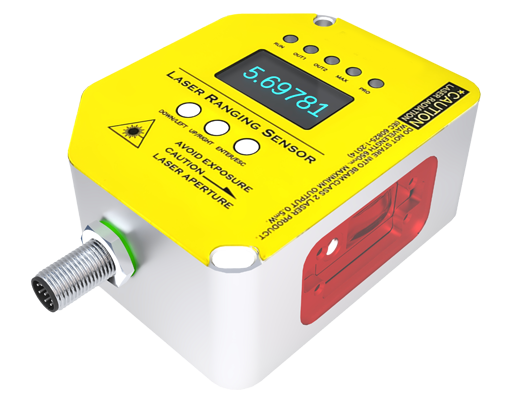

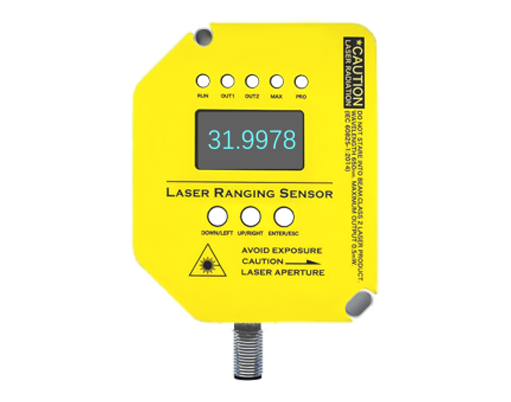

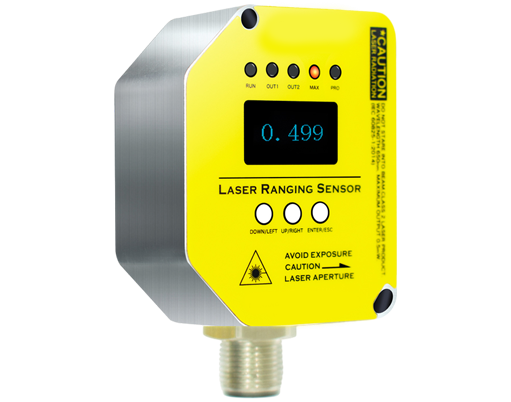

High frequency laser ranging sensor

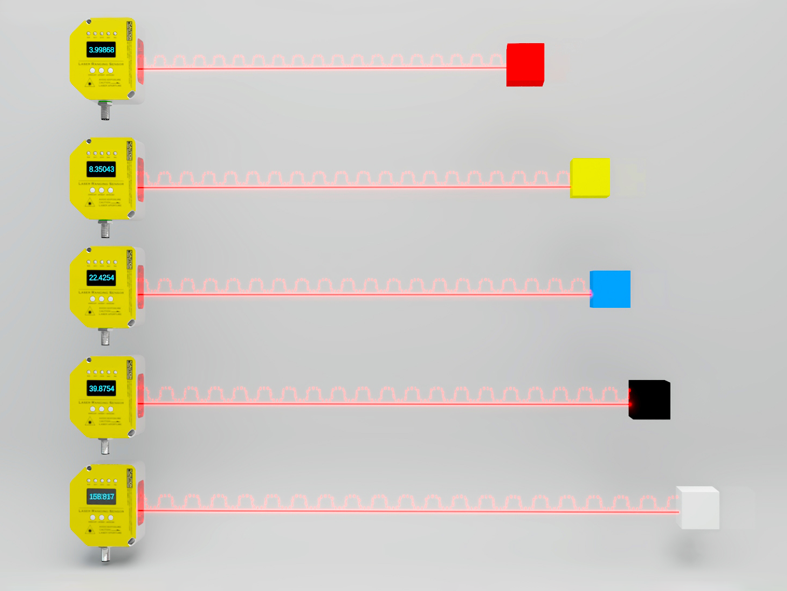

Millimeter level high-precision measurement Using a 650nm red laser beam and high-frequency signal processing technology (100-3000Hz sampling rate), a measurement accuracy of ± 1mm is achieved, suitable for harsh scenarios such as industrial automation positioning and AGV navigation that are sensitive to small distance changes.
Anti interference industrial grade design
Intelligent output and easy integration
Technical Parameter
| measuring range | 0-5M,0-10M,0-15M,0-20M,0-30M,50M,80M,100M,150M,200M | ||
| Supply voltage UV | DC 10V...30V | ||
| Residual ripple | ≤ 5 V | ||
| power consumption | ≤ 2.1W 4) | ||
| initialization time | ≤ 250ms | ||
| Warm-up time | ≤ 10s | ||
| Housing material | ± Aluminum Alloy (AL) Organic Glass (PMMA) | ||
| line type | M12 waterproof connector, lead wire | ||
| monitor | OLED display screen | ||
| weight | 360g | ||
| degrees of protection provided by enclosure | IP65 | ||
| protection grade | III | ||
| measuring range | 0-5M,0-10M,0-15M,0-20M,0-30M,50M,80M,100M,150M,200M | ||
| Measuring objects | Natural objects | ||
| resolution | 5-10mm | ||
| accuracy | ±2-3cm | ||
| frequency | 200Hz，100Hz，50Hz | ||
| Output time | ≥ 4 ms 6) | ||
| light source | red-laser | ||
| laser class | CLASS-|| | ||
| Typical photoelectric size distance () | 15 mm x 15 mm (10 m) | ||
| laser class | CLASS-|| | ||
| Other functions | Adjustable sliding average: fast/slow, switching mode: distance object (DtoO), digital output that can be taught, parameterized, and reversed Adjustable hysteresis phenomenon, teaching style, parameter adjustable, reversible analog output terminal, multifunctional input: laser off/external teaching/disable Turn off the display screen, restore factory settings, and lock the user interface | ||
| Average laser service life (at 25 ℃) | 100,000 h | ||
| Digital output (at 25 ℃) | |||
| quantity | 1 1) 2) 3) | ||
| Type < , span=" " > <! --, --> | PNP and NPN are optional | ||
| Suitable for high output current IA | ≤100 mA | ||
| Analog output terminal | |||
| quantity | 1 | ||
| type | Voltage/current output optional | ||
| Voltage/Current | 0V-10V/4mA-20mA,≤300Ω | ||
| resolution | 12bit | ||
| Multi functional input (MF) | 1 x3) 4) | ||
| lag | 10mm...1000mm | ||

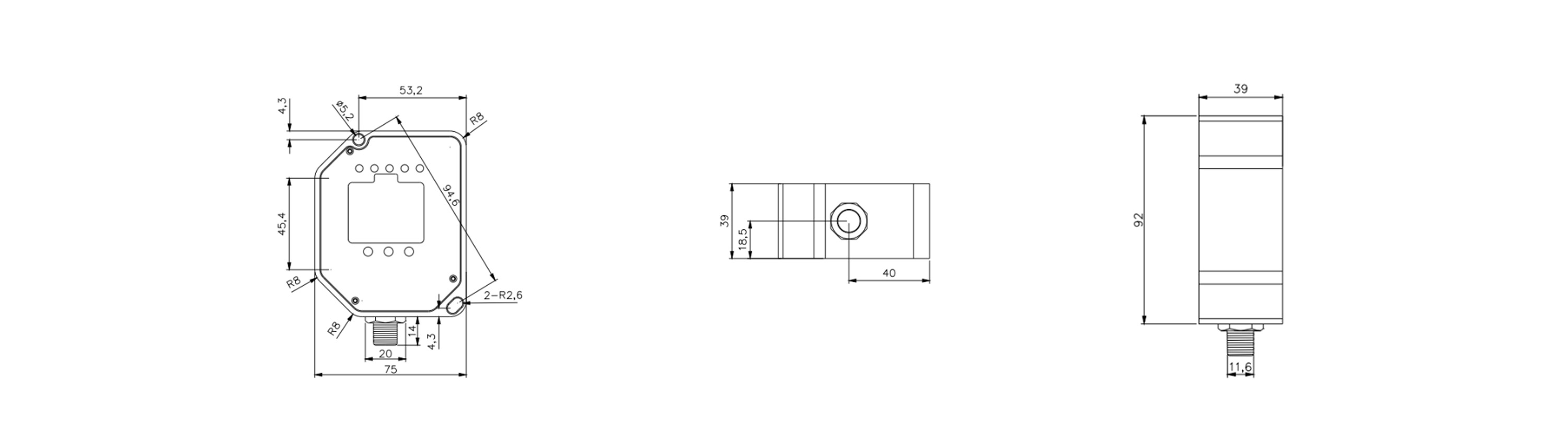

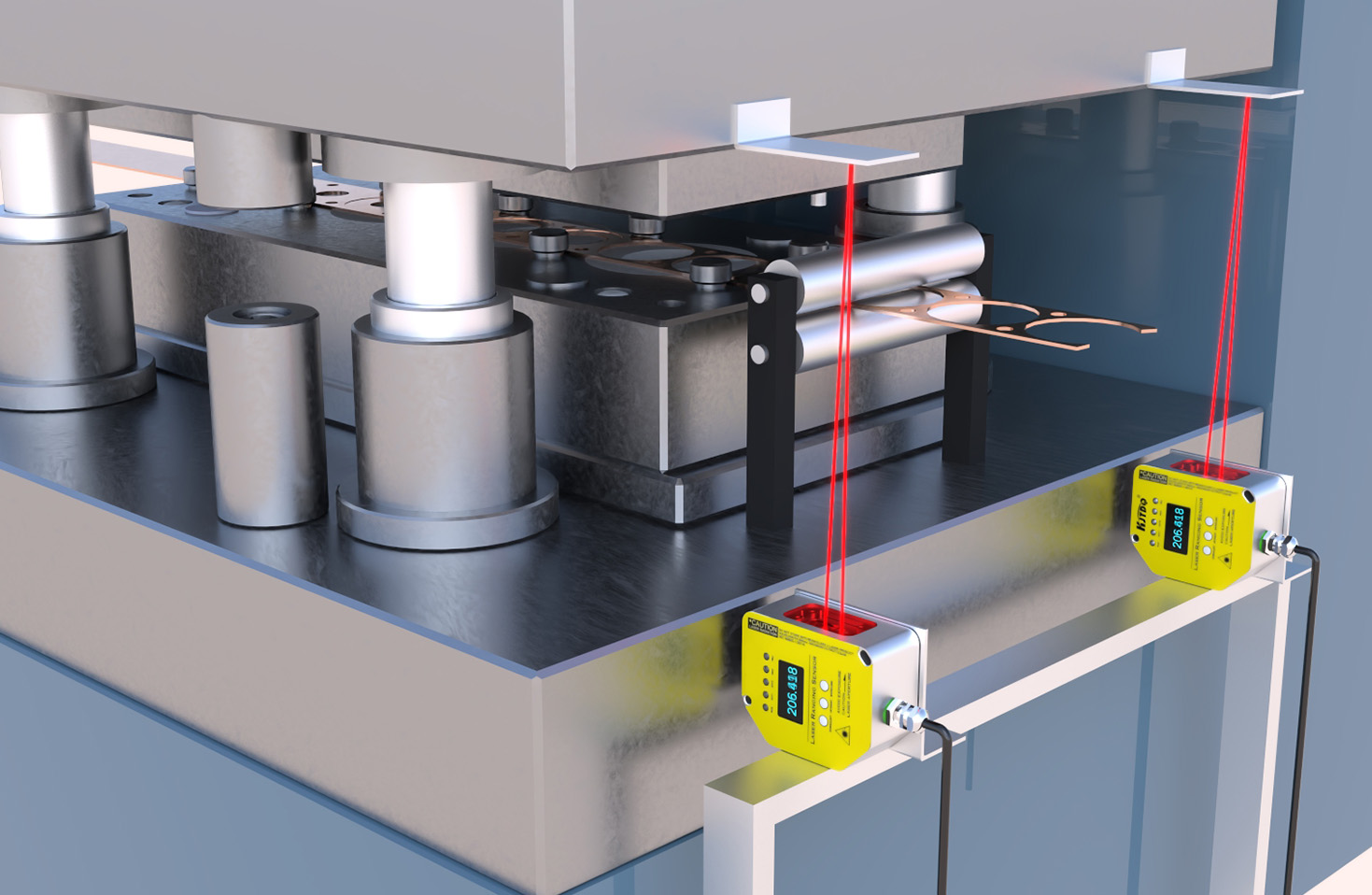

Application scenarios
