Product Features

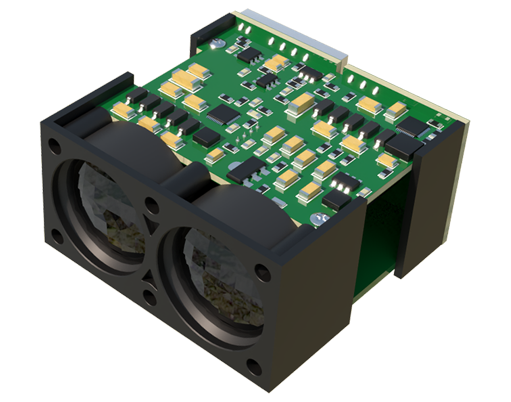

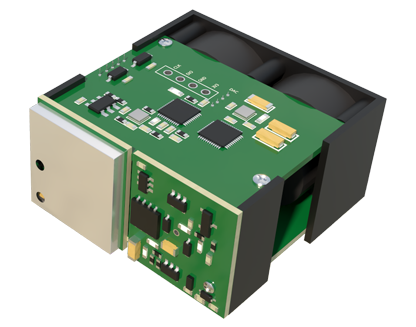

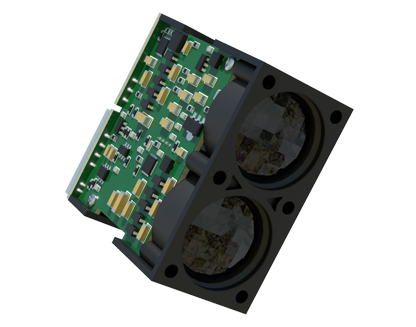

LL-X3Pro
Ultra long distance single point LiDAR LL-X3Pro is an industrial grade ultra long range high-frequency laser radar with a range of up to 350 meters. The LL-X3Pro integrates strong light environment and rain and fog compensation algorithms, supports multiple industrial communication interfaces, and has an IP67 level structure, making it suitable for various indoor and outdoor application scenarios. In addition, LL-X3Pro integrates multiple measurement modes internally and opens up various parameters for customers to choose and configure independently to meet the ranging needs of different scenarios. LL-X3Pro has the characteristics of long detection distance, easy installation, high cost-effectiveness, and high integration. The optical system is more efficient and the circuit design is more optimized.
High protection level and strong performance
Multiple modes and parameters for users to choose independently
Technical Parameter
| model | LL-X3Pro | |
| range | 0.05m-300m@50 %Reflectivity | |
| frequency | 1000Hz/50Hz | |
| accuracy | ± 50mm system error | |
| accuracy | ± 30mm standard deviation | |
| Anti environmental light | > 100Klux | |
| Measure laser wavelength | 905nm | |
| FOV | -- | |
| Measure laser level | Class1 | |
| Indicate laser wavelength | -- | |
| Indicate laser level | -- | |
| INPUT VOLTAGE | 9-36V | |
| Average Power | ＜1W | |
| communication model | Gold、IIC | |
| protection grade | -- | |

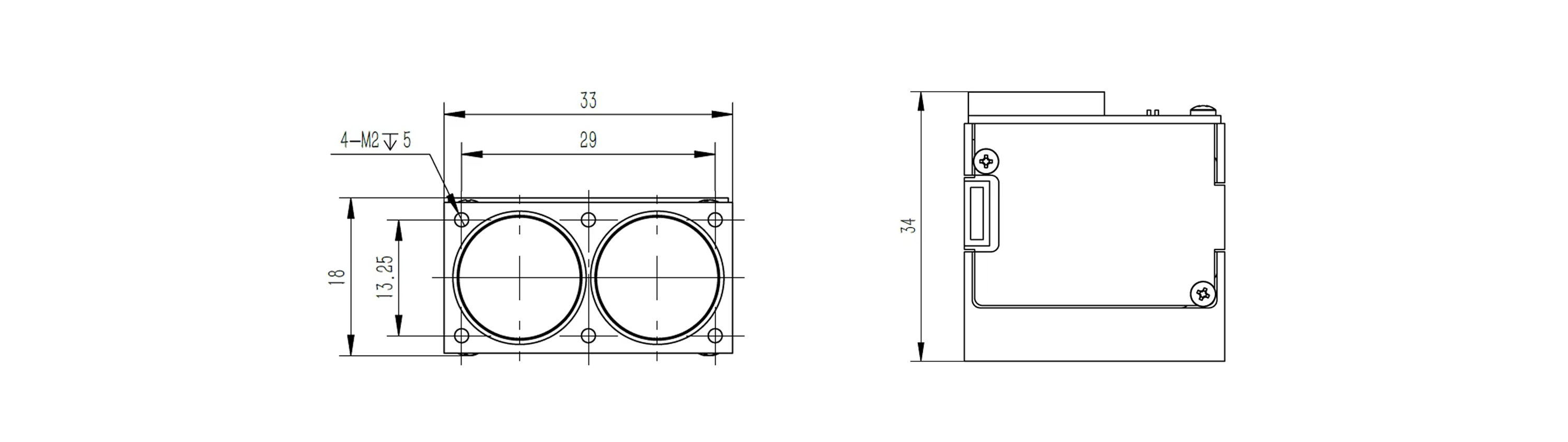

| volume | 33mm x34mm x18mm | |
| weight | ＜25g | |
| Shell material | -- | |
| operation temperature | -20℃-+60℃ | |
| Outgoing terminal | 5P | |
Application scenarios
Wiring diagram
