Product Center > Light dome series > TOF laser photoelectric sensor >
Product Features Technical Parameter Application scenarios Download PDF
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/71b2bac2d912d2b.png

TOF laser photoelectric sensor

Download PDF Get Free Sample

Product Features

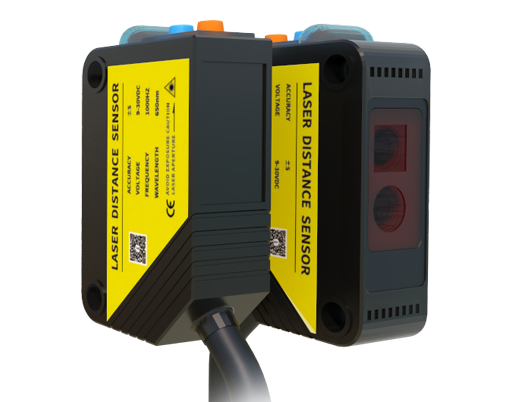

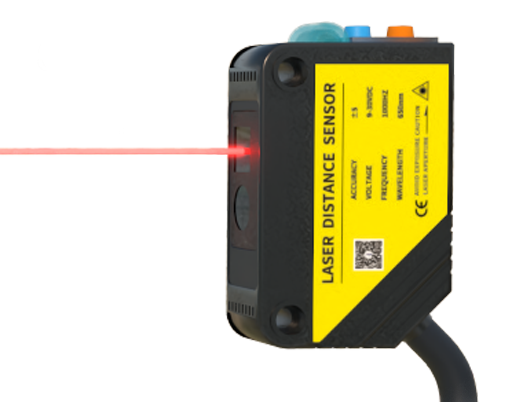

TOF laser photoelectric sensor

High precision long-distance measurement, millimeter level positioning Based on time-of-flight (TOF) technology, the distance is accurately calculated through laser pulse round-trip time, achieving millimeter level measurement accuracy. The detection range can reach several meters to tens of meters (such as 0.2m-50m), suitable for precise positioning of long-distance targets and three-dimensional spatial perception, such as logistics sorting, industrial robot obstacle avoidance, and other scenarios.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/968471a6ed9cb6.png
Full scene anti-interference, stable and reliable
Using infrared laser light source (905nm/940nm) and narrowband filtering technology, effectively filtering out environmental light interference (such as sunlight, LED lighting); Built in ambient light adaptive algorithm and anti reflection optimization, capable of stable detection of high reflection (metal) or low reflection (black objects) targets, suitable for complex industrial environments.
https://kenaiwo.oss-cn-beijing.aliyuncs.com/202505/29a53636e7deaf7.png
High speed response, dynamic tracking
High speed response, dynamic tracking

Technical Parameter

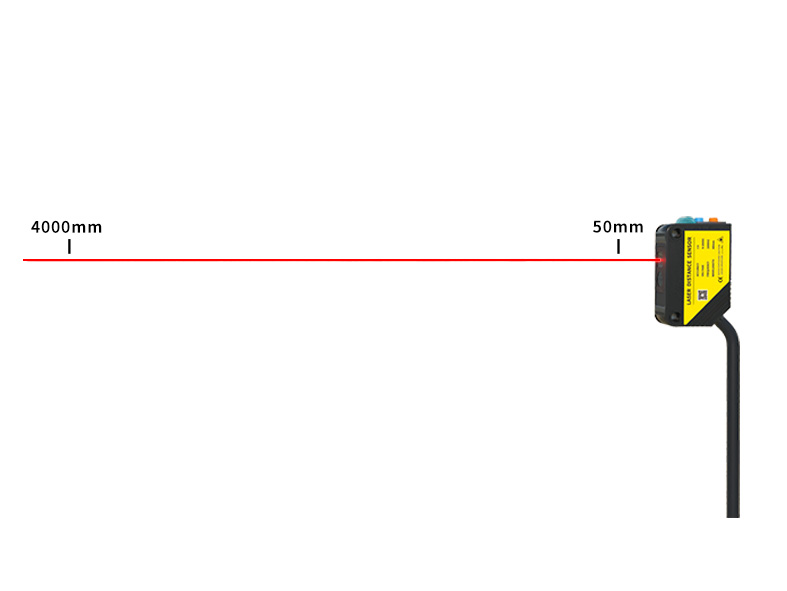

Detection distance
                                                                       4M
laser light sourceLaser diode 650nm, ≤ 1mW; Compliant with GB7247.1-2001, Class | | Laser Eye Safety Requirements
laser classClass 1
Ranging frequency1000Hz adjustable
work distance0.05m-4m
10% reflectivity1m
response timeLMS (adjustable)
systematic error±10mm
Sustained error±3mm
working voltage 9-36V
interfacePNP/NPN/TTL 串口
power consumption0.5W
weight < 10g

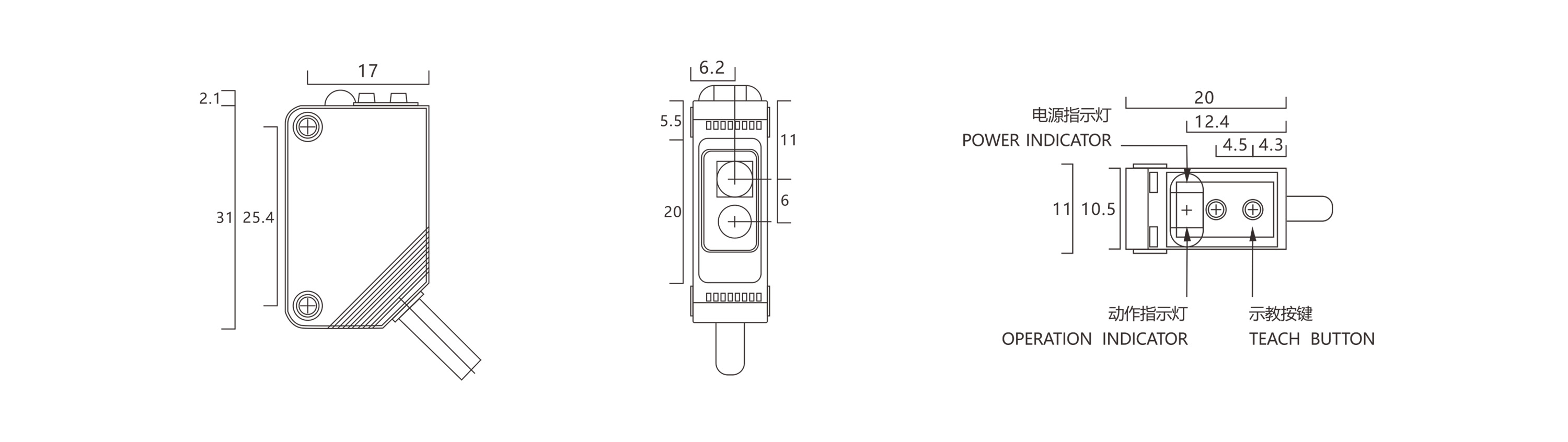

Dimensions (length, width, height)33mm x20mm x11mm
protection gradeIP65
Ambient Temperature-20C-+75℃
Storage environment temperature-40C-+100℃
Ability to resist environmental light > 50 Clubs

Application scenarios

Wiring diagram
