Product Features

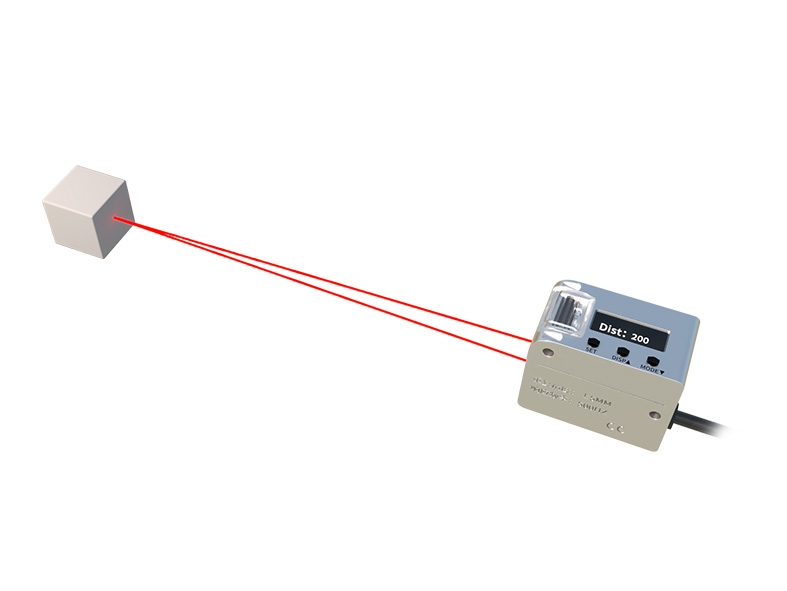

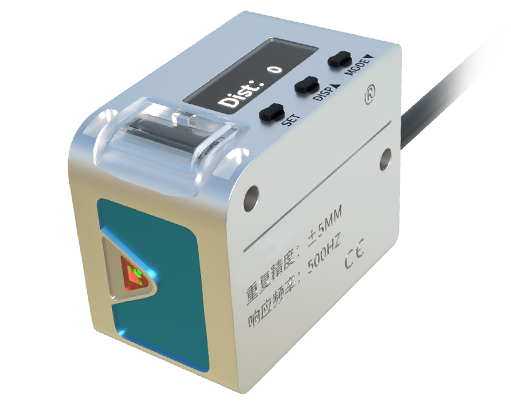

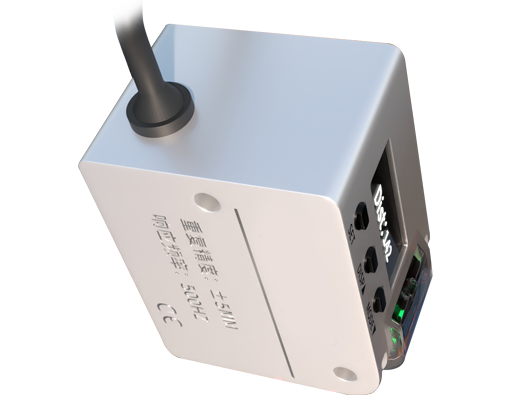

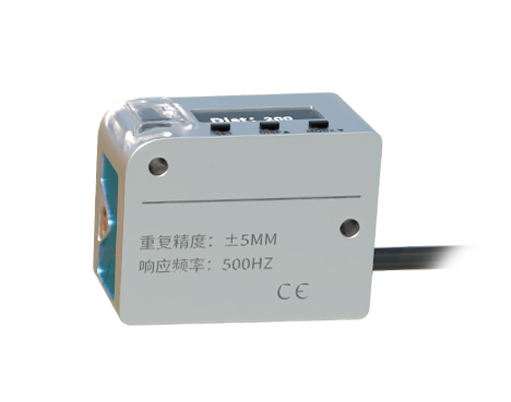

Amplifier with built-in TOF laser sensor
Built in amplifier, strong signal anti-interference Integrated high-sensitivity signal amplification module effectively enhances the strength of laser echo signals, reduces interference from ambient light, dust, or target surface materials on measurements, and can stably output accurate data in complex industrial environments, reducing the risk of false alarms or missed detections.
Long distance high precision, suitable for multiple scene requirements
Non contact design, flexible installation and maintenance free
Technical Parameter
| Detection distance | 10M | 20M |
| laser light source | Laser diode 650nm, ≤ 1mW; Complies with GB7247.1-2001, Class I laser eye safety requirements | |
| laser class | Class 1 | |
| Ranging frequency | 1000Hz adjustable | |
| work distance | 5m | |
| 10% reflectivity | 1m | |
| response time | LMS (adjustable) | |
| systematic error | ±10mm | |
| Sustained error | ±3mm | |
| working voltage | 9-36V | |
| interface | NPN/PNP/RS485/4-20mA | |
| power consumption | 0.5W | |
| weight | < 10g | |

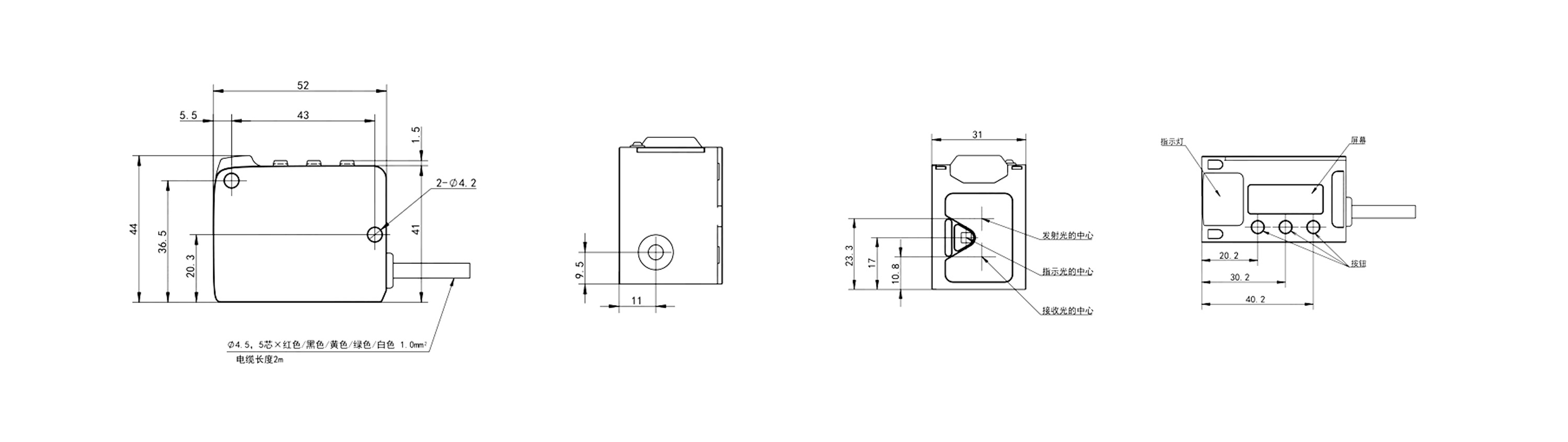

| Dimensions (length, width, height) | 41mm x37mm x22mm | |
| protection grade | IP65 | |
| Ambient Temperature | -20C-+75℃ | |
| Storage environment temperature | -40C-+100℃ | |
| Ability to resist environmental light | > 50 Clubs | |

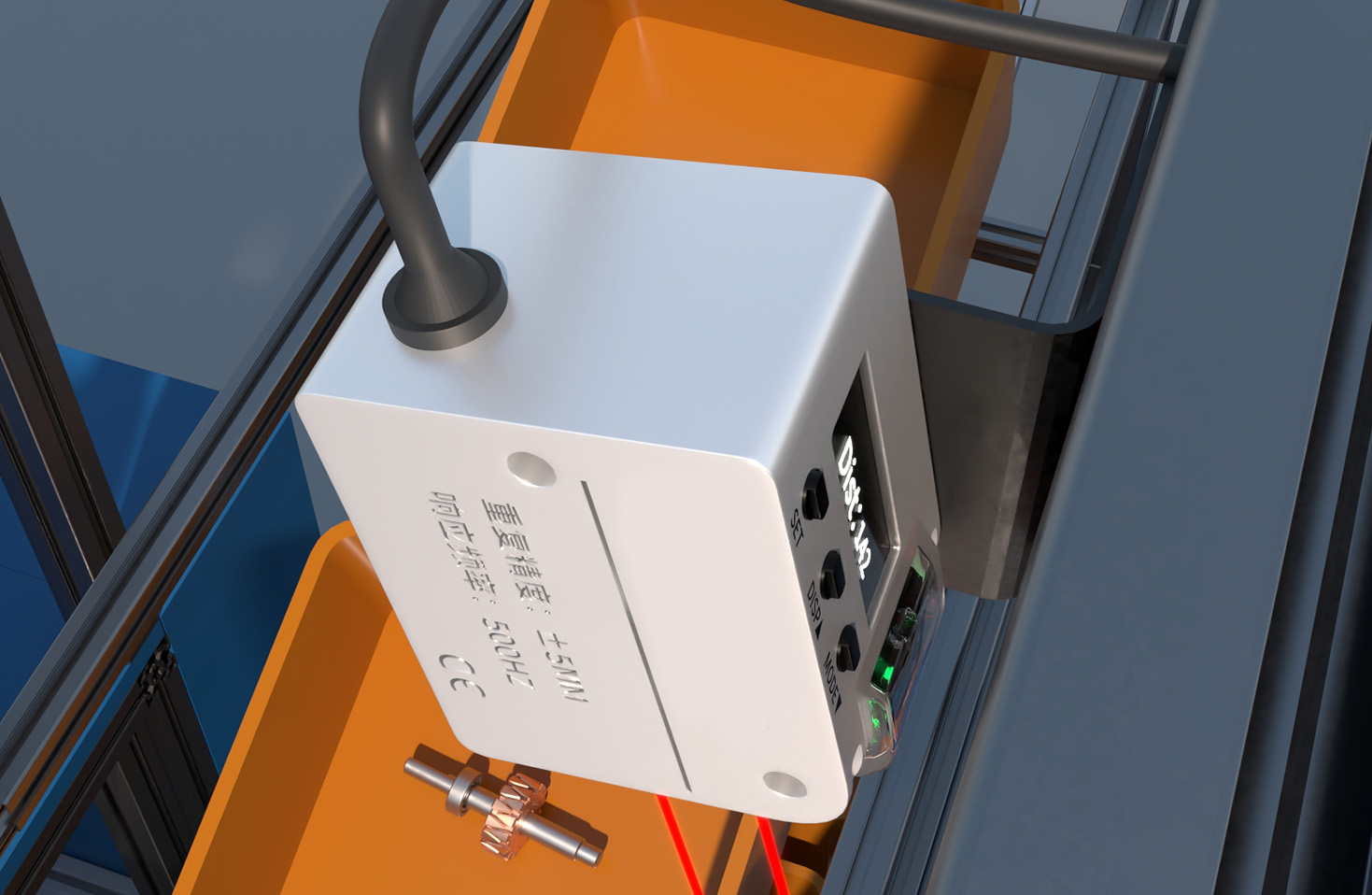

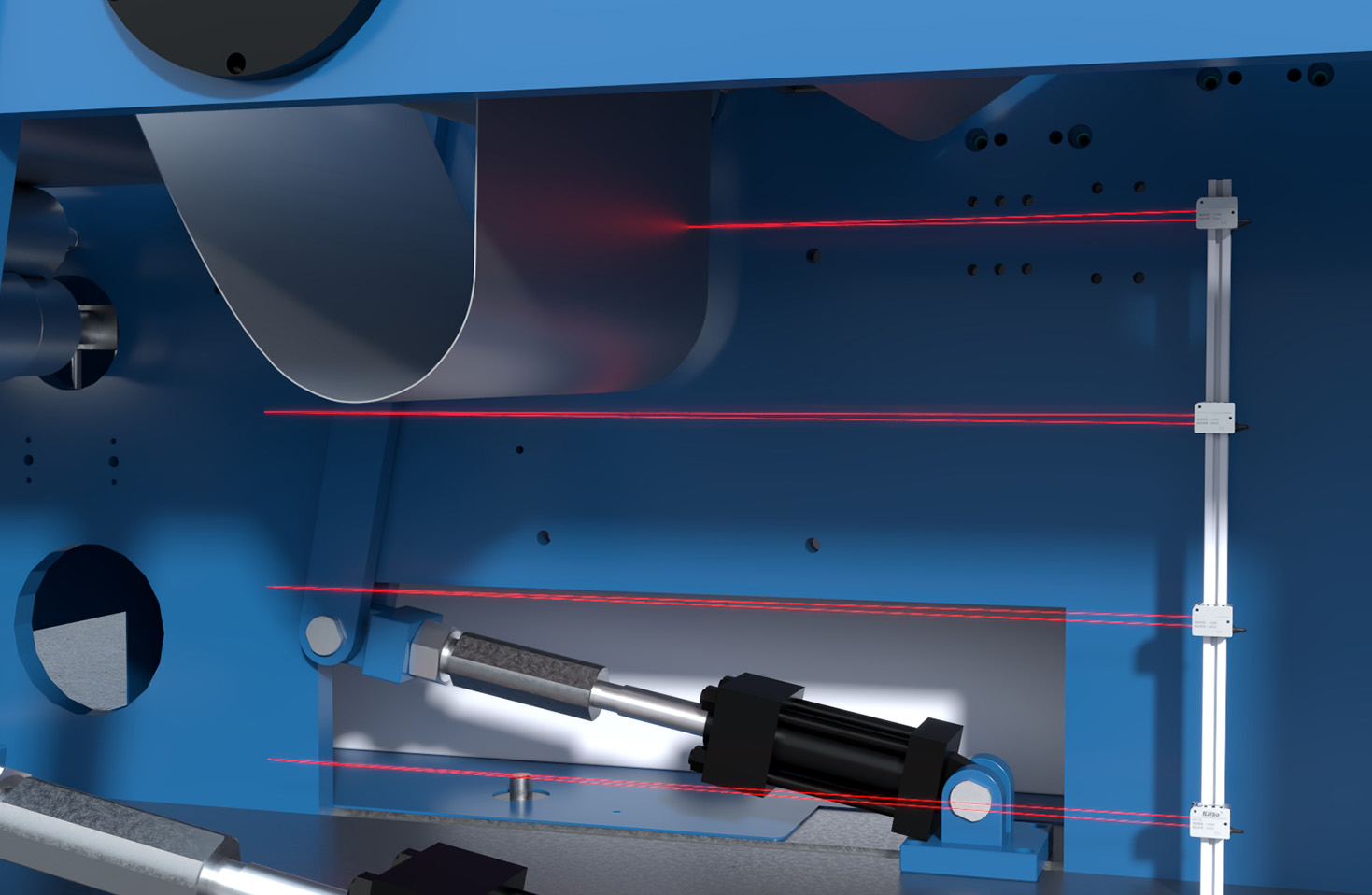

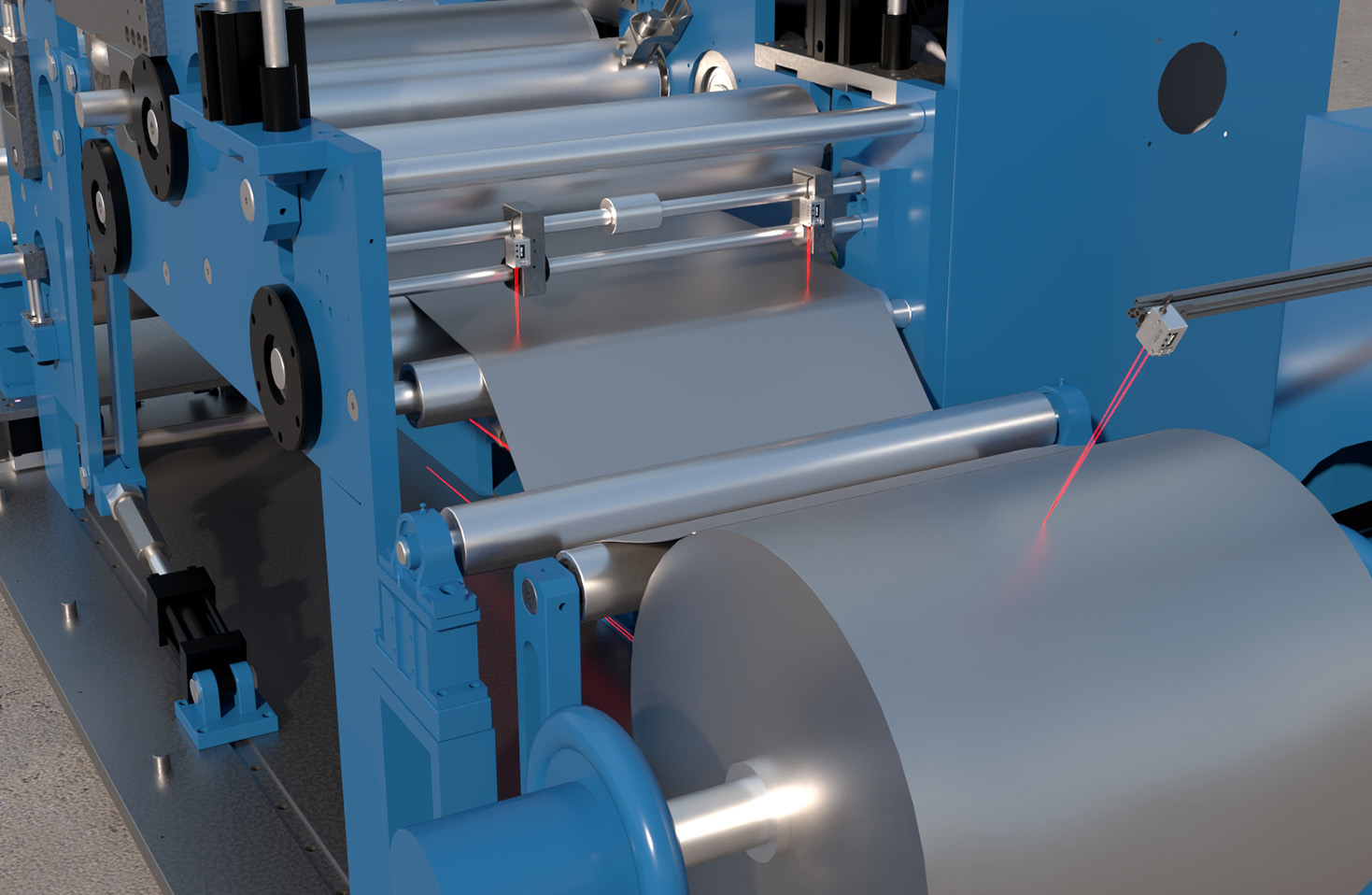

Application scenarios
Wiring diagram
