Product Features

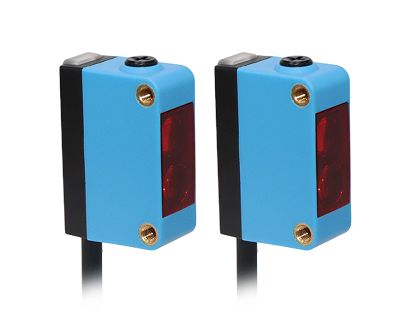

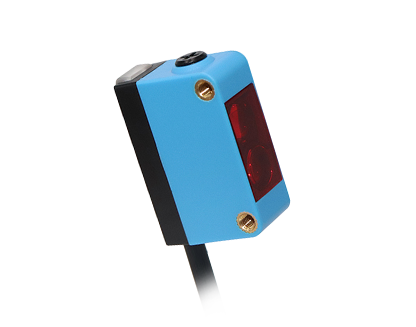

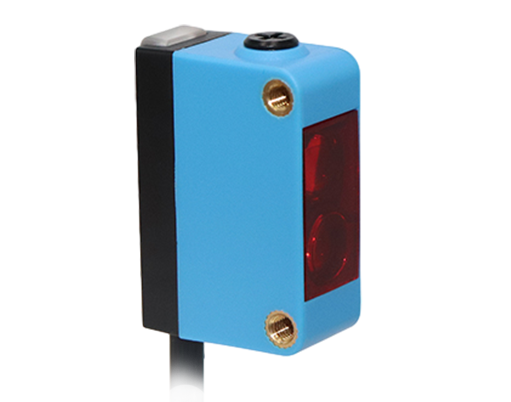

Background suppression photoelectric sensor
Integrated sensor housing Dustproof, corrosion-resistant, long service life
Short circuit protection
Super strong anti-interference ability
Technical Parameter
| type | Outgoing type | |||||
| model | NPN output | KN-L61-BG | KN-L62-BG | KN-D61-BG | KN-D62-BG | KN-D66-BG |
| Laser spot 2mm | Laser spot 2mm | Minimum spot size 1mm | Spot size 8-12mm | Collimated spot 8mm | ||
| output mode | NPN/PNP integrated electrode open circuit, ≤ 100mA/30VDC | |||||
| switch mode | L. On (light in action)/D.on (light blocking action) can be switched | |||||
| pilot lamp | Work indicator light: green, output indicator light: orange | |||||
| response time | < 2ms | |||||
| sensitivity modulation | Multi turn potentiometer | |||||
| light source | Laser, red LED (660nm) | |||||
| working voltage | 10~30V DC+10% | |||||
| Power consumption current | ≤30mA | |||||
| Environmental luminosity | Sunlight: below 10000LX incandescent lamp: below 3000LX | |||||
| ambient temperature | -25℃-+55℃ | |||||
| ambient humidity | 35% 85% ice free | |||||
| Protection level | IP65 | |||||
| material | ABS (shell); PC (lens) | |||||
Application scenarios
Wiring diagram
