Product Features

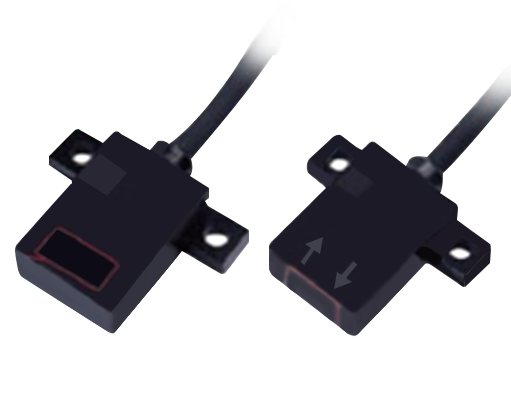

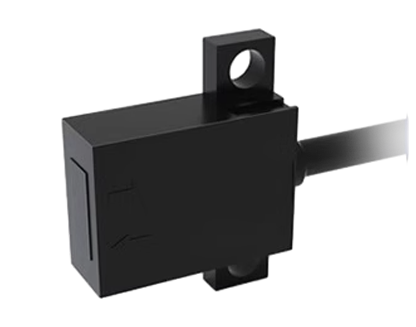

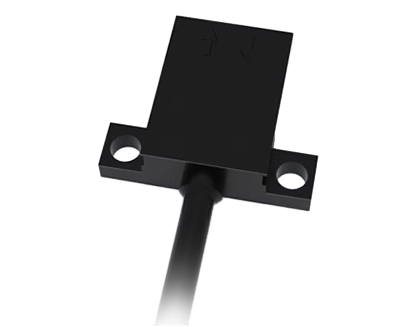

Flat photoelectric sensor
Widely applicable Detect the capacitance inside the tray, locate the workpiece, and confirm the positioning of the card board through testing
Multiple models and specifications
Different detection methods
Technical Parameter
| model | NPN output | KN-WD05 | KN-QD05 |
| Top detection | Forward detection | ||
| detection distance | Black is greater than 5mm and white is greater than 10mm | ||
| detection | Diffuse reflection type | ||
| Detecting light source | 940nm infrared light | ||
| Detected object | Opaque objects with a diameter of 4mm or more | ||
| contrast | More than 20% of the detection distance | ||
| control output | Light input ON | ||
| response frequency | Below lms | ||
| supply voltage | DC12-24 pulsation (p-p) below 10% (DC10-30) | ||
| Consumption current | ≤25mA | ||
| circuit protection | Surge protection, short circuit protection, polarity reversal protection | ||
| Display light | Action indicator light (red) | ||
| ambient temperature | During operation, the temperature ranges from -25 ° C to+70 ° C (without ice or frost). During storage, the temperature ranges from -40 ° C to+85 ° C (without ice or frost) | ||
| Environmental illumination impact | Sunlight: below 10000LX incandescent lamp: below 3000LX | ||
| Protective structure | IP65 | ||
| Link method | Wire lead out type (standard 2m) | ||
| Shell material | PC | ||
Application scenarios
Wiring diagram
